Lankhorst Boltless
Bend Restrictor
Safeguards subsea cables, umbilical’s and flexibles from bending beyond their critical radius
The fastest Bend Restrictor to install
Lankhorst Bend Restrictors are designed to protect your cable, umbilical or flexible from severe damage through/by overbending, while saving tremendous installation time thanks to the innovative design.
- Very fast and easy installation
- Robust, long-term protection against overbending
- Patented boltless design
Operational simplicity and high performance
Our Boltless Bend Restrictors are manufactured from the most suitable heavy duty, tough and damage resistant materials. Every part is interchangeable, keeping installation a simple process.
Why choose Lankhorst Boltless Bend Restrictors?
Ultra-fast and easy offshore installationIts boltless interlocking system and interchangeable parts enable tremendously fast installation.
Qualified for high loadsTests ensure long-term protection in the harshest offshore environments.
Easy to remove with ROVThe boltless design enables remote, subsea removal and repositioning.
Several design optionsBend Restrictors can be made for any cable OD, any locking radius, and any maximum bending moment.
Excellent project managementDedicated project managers ensure seamless execution, on-time delivery, and project success.
Extensive testing possibilitiesIn-house testing facility, including our bending test rig and our impact tower.
Curious how we can protect your subsea line?
Please contact one of our Regional Business Managers
Lankhorst Boltless Bend Restrictor design
The Lankhorst Boltless Bend Restrictor is made from a high performance, marine-grade polyurethane(PU) and is designed to provide protection against overbending of your cable, umbilical or flexible.
The design of a bend restrictor assembly consists of half shells that are interchangeable and interlock with each other, keeping the installation process simple. Due to the unique boltless design no bolting is required, except for the end piece. There are several options for interfacing with the fixed structure, such as male or female reaction collars to allow a restrictor string to be attached to an end fitting, or tether clamps to allow the string to be fixed to the cable in case attachment is required away from the end fitting termination.
Optimized for installation

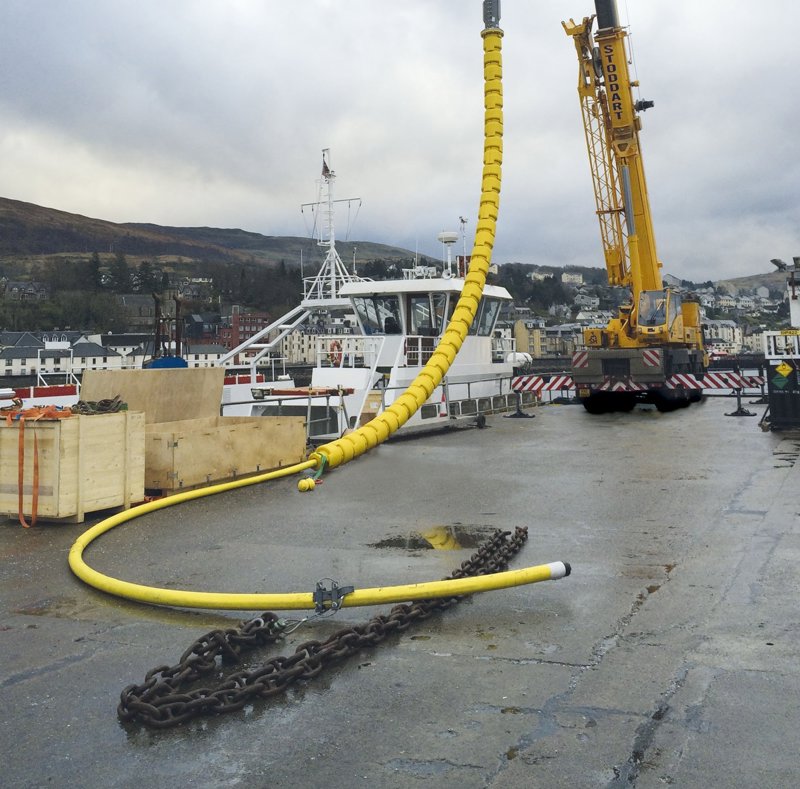

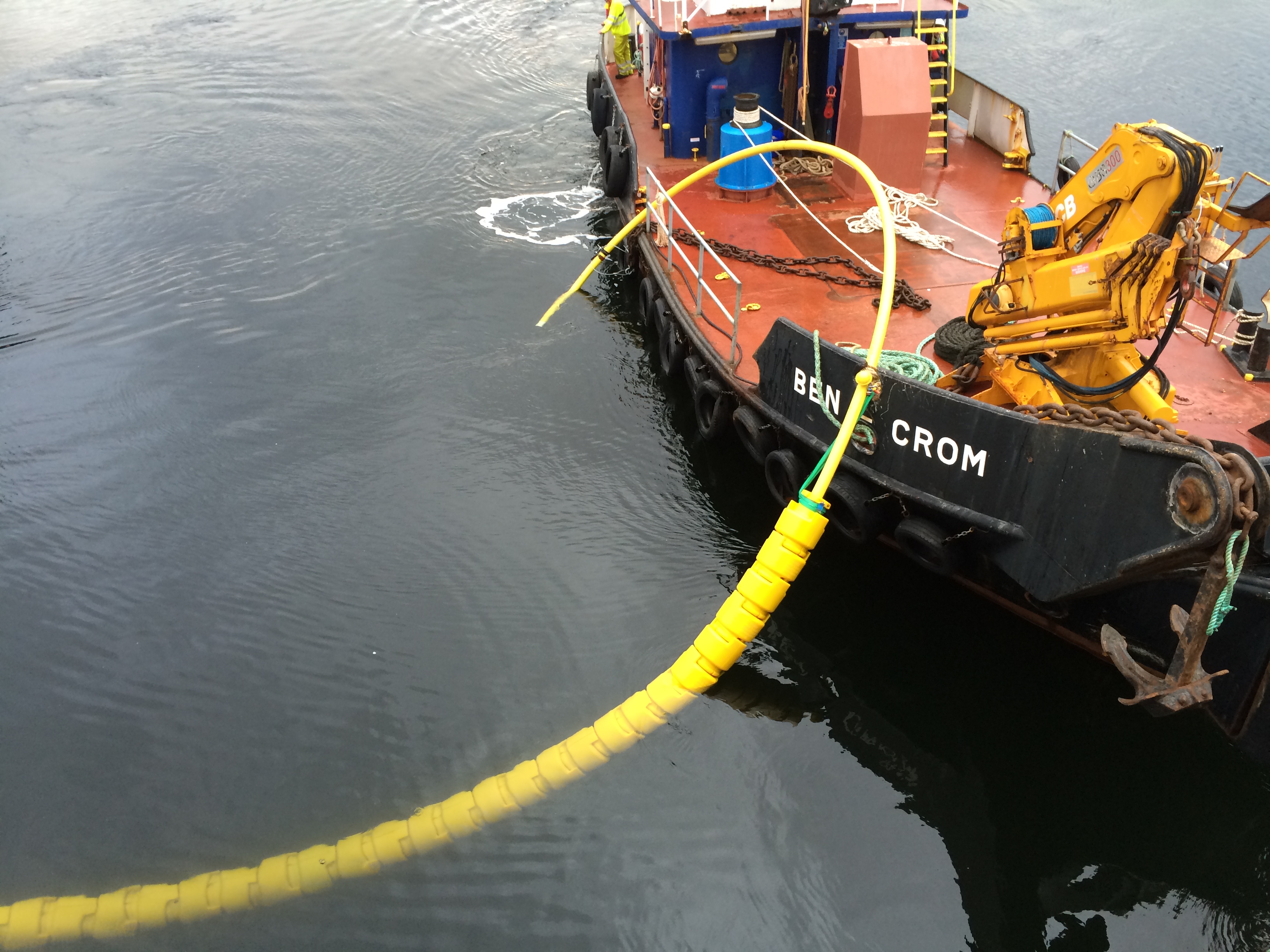

The Lankhorst Boltless Bend Restrictor is engineered to enormously improve on offshore installation and in the meantime offer the best protection against overbending. The assembly is mounted around the cable and attached to the structure so that bending of the cable will be prevented beyond the designed locking radius of the bend restrictor, thus preventing the cable from overbending
The half shells are light weight, safe to handle and super-fast to install. With a track records showing deployment all over the world and our own in-house testing equipment, the Lankhorst Boltless Bend Restrictor system is the right protection for your subsea umbilical, cable or flexible.
Lankhorst Boltless Bend Restrictor projects
TechnipFMC - BP - Block 18 STFL14 Strings
Oceaneering USA - Shell - Appomatox14 Strings
Aker Solutions Norway - Statoil - Aasta Hansteen11 Strings
